Hubble telescope's Universe revealed in 3D

Media playback is unsupported on your device
Media captionHubble’s 30th anniversary image turned into a 3D “spaceflight” experience“.

New techniques are being used to transform images from the Hubble Space Telescope into spectacular 3D visualisations of the Universe.

Today the Hubble Space Telescope - affectionately known as "our eye on the Universe" - celebrates 30 years in orbit around Earth. To mark the occasion, astronomers have released a special anniversary image of two nebulas, which lie within a satellite galaxy of the Milky Way called the Large Magellanic Cloud.

It's the nearest Hubble gets to having to a birthday present. But this year, there's a second part to the present, because accompanying the image is a "3D scientific visualisation" - offering the incredible sensation of floating through outer space to see what Hubble saw, first-hand.

Whilst the image comes from Hubble's main camera. Its 3D representation is the product of weeks of work by a team of visualisation specialists at the Space Telescope Science Institute (STScI) in Baltimore, US.

Hubble Space Telescope Image copyright NASA
Image caption Astronauts carried out five servicing missions to Hubble using the space shuttle between 1993 and 2009

The team led by Greg Bacon and Dr Frank Summers has transformed many of Hubble's most awe-inspiring images into 3D visualisations - from the spectacular Orion Nebula to the fabulous Whirlpool Galaxy and ethereal Horsehead Nebula.

A nebula is a giant cloud of dust and gas in space. Some nebulas come from the gas and dust thrown out when a dying star explodes. Others are regions where new stars are beginning to form.

Much of the visualisation team's incredible work is showcased on tonight's Horizon programme on BBC Two which tells the story of the Hubble Space Telescope.

"There are several important reasons why we make these visualisations: they bring the Hubble images alive, they showcase the 3D structure of astronomical objects, and they are visually compelling with widespread appeal well beyond the science-attentive public," says astronomer Dr Frank Summers.

"Our hope is that the public will not only marvel at the splendours of the cosmos, but also intuitively develop a more scientific mental model of the Universe."

Behind the Scenes

One of the most mind-blowing of the visualisations takes the viewer on a remarkable journey, flying across the Universe to witness almost 13 billion years of cosmic evolution.

Media playback is unsupported on your device
Media captionHubble looks back in time 12.6 billion years

As incredible as it seems, all the hundreds and thousands of galaxies you see in this visualisation come from a single image taken by Hubble.

It's called the "Hubble Ultra Deep Field" and was created when Hubble stared at a small patch of sky for the equivalent of more than 11 days to see some of the most distant galaxies ever observed.

To make the visualisation, the team cut-out 5,333 galaxies from Hubble's image and then extrapolated the distance of each galaxy (using "redshift" measurements) and carefully placed them one-by-one into a virtual 3D space.

The distance scale was compressed by a factor of a few hundred to make the fly-through feasible. But apart from this, it's an authentic 3D representation of Hubble's image.

Galaxies cut out of the Hubble deep field Image copyright STScI
Image caption The STScI visualisation team “cut-out” thousands of galaxies from the Hubble Ultra Deep Field

According to Dr Frank Summers: "The vast growth of computers, along with graphics software for feature films, has helped fuel our expansion of astronomy visualisations. We can now handle much larger images and datasets as well as render high-resolution, complex scenes that would have been impossible before. Further, we get to ride on the coattails of expensive software investments made for fiction and fantasy, then utilise the appropriate parts of those packages for scientific purposes."

The Pillars of Creation in 3D

Every Hubble visualisation brings its own unique set of challenges. A good example is the 3D scientific visualisation of arguably Hubble's most iconic image and one of the great celestial wonders of the Milky Way: the magnificent Pillars of Creation.

Media playback is unsupported on your device
Media captionThe Pillars of Creation Revealed in 3D

It was produced for Horizon by visualisation specialists at the European Southern Observatory (Eso) and takes the viewer on an exhilarating journey: flying 100 light-years into a giant hollowed-out cloud of dust and gas called the Eagle Nebula. Upon reaching the Pillars of Creation, the view transitions to infrared, revealing embryonic stars within the columns of gas.

Hubble most recently observed the Pillars in 2014 in visible and infrared light. To show the surrounding nebula landscape, visualisation specialists Luís Calçada and Martin Kornmesser chose to supplement Hubble's images with other observations - from Eso's La Silla Observatory in Chile and the Digitized Sky Survey.

Hubble image composite Image copyright NASA, ESA/Hubble, Hubble Heritage Team; E
Image caption Hubble’s images of the Pillars of Creation (bottom left & right) were supplemented with images of the surrounding Eagle Nebula (top left & right)

The first job in creating the visualisation was to build a 3D representation of the Eagle Nebula. To do this, the team first removed the stars from the images, and then extracted the nebula's many shapes and layers, before re-assembling these "cut-outs" in 3D space. Akin to erecting scenery on a theatre stage, except this stage spans 100 light-years!

"This is a very intuitive process - visually judging which layers of gas are foreground, which are background, how they interact with the light from the stars at its core," says Luís Calçada.

Shapes and layers from the telescope images Image copyright ESO
Image caption The team extracted shapes and layers from the telescope images...

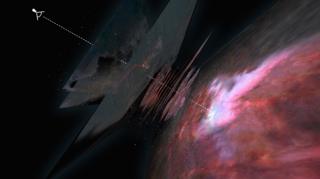

Assembly of layers Image copyright ESO
Image caption ...and then assembled these into 3D space

To add the missing stars back in, the team used data from Esa's "Gaia" spacecraft - which has mapped the 3D position, brightness and colour of more than a billion stars in the Milky Way. This allowed them to accurately recreate approximately 4,000 "synthetic stars" within 1,000 light-years either side of the nebula.

Synthetic stars Image copyright ESO
Image caption The team added 4,000 “synthetic stars” using 3D data from the “Gaia” catalogue.

Having built the nebula, this left the daunting task of creating a 3D representation of the pillars.

The tallest pillar actually stands behind the two other pillars and each is at a particular angle. The team used data from the Very Large Telescope in Chile to accurately position and orientate the pillars in 3D space. They then "sculpted" a 3D model of the pillars - and mapped-on Hubble's beautiful imagery.

The end result is a visualisation based on real telescope images and data, but with intuition and extrapolation filling in the gaps where the data is lacking.

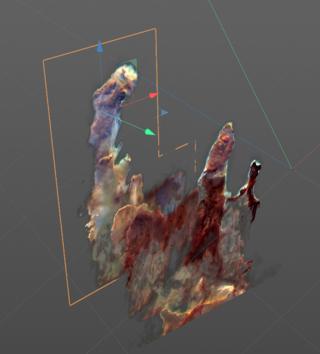

Pillars of creation Image copyright ESO
Image caption Data from the Very Large Telescope in Chile allowed the team to position 2D pillars in 3D space
Presentational white space
3D model of the pillars of creation Image copyright ESO
Image caption The final task was to sculpt a 3D model of the pillars and map-on Hubble’s imagery
Presentational white space

According to Luís Calçada: "Conveying a correct sense of scale of the nebula was perhaps the hardest challenge. Processing, importing and lining up the Gaia catalogue stars to our reconstructed 3D nebula was also quite a difficult task, since we wanted to render an aesthetically pleasing nebula, but also one which was realistic."
